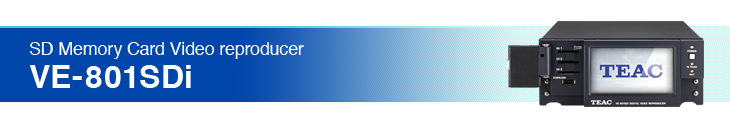

VE-801SDi

Specifications

Standard Model

Video
NTSC* 1.0V p-p 50/100ohm Balanced and 50ohm Unbalanced
* HD (1280 × 720) output to be optional.
Audio
Harmonic Distortion 0.5% max (third harmonic)
S/N 60dB
Channel Separation 60dB
Dynamic Range 60dB
Frequency Response 100Hz to 15kHz +/-3dB
Output Level 0dBm (600ohm differential)
Capacity
SD Memory Card Three (3) SD Memory card slots (SDXC capable)
USB port For downloading into internal storage
Internal storage 32GB
Size/Weight
Dimensions (Typical) 7.4in. W × 2.9in. H × 12.6in. D
188mm W × 73.5mm H × 320mm D
Weight 4.2kg (MAX)
Power
115V, 400Hz/800Hz AC
Operating temperature range
23F to 131F / -5℃ to +55℃ (passive cooling)
Cooling
No external cooling required

* Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

* Features and specifications are subject to change without notice.

4K Model

Video
4K/HD 4K (3840 × 2160)
Full HD (1920 × 1080) / HD (1280 × 720)
NTSC 1.0V p-p 50/100ohm Balanced and 50ohm Unbalanced
Audio
Harmonic Distortion 0.5% max (third harmonic)
S/N 60dB
Channel Separation 60dB
Dynamic Range 60dB
Frequency Response TBD (100Hz to 15kHz +/-3dB)
Output Level 0dBm (600ohm differential)
Capacity
SD Memory Card Three (3) SD Memory card slots (SDXC capable)
USB port For downloading into internal storage
Internal storage 32GB
Size/Weight
Dimensions (Typical) 7.4in. W × 2.9in. H × 12.6in. D
188mm W × 73.5mm H × 320mm D
Weight 4.5kg (MAX)
Power
115V, 400Hz AC
Operating temperature range
23F to 131F / -5℃ to +55℃ (passive cooling)
Cooling
No external cooling required

* Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

* Features and specifications are subject to change without notice.

MAP Model

Video
NTSC 1.0V p-p 50/100ohm Balanced and 50ohm Unbalanced
HD HD (1280x720) * FULL HD to be optional.
Audio
Harmonic Distortion 0.5% max (third harmonic)
S/N 60dB
Channel Separation 60dB
Dynamic Range 60dB
Frequency Response TBD (100Hz to 15kHz +/-3dB)
Output Level 0dBm (600ohm differential)
Capacity
SD Memory Card Three (3) SD Memory card slots (SDXC capable)
USB port For downloading into internal storage
Internal storage 32GB
Size/Weight
Dimensions (Typical)
*Not including protrusions
7.4in. W × 2.9in. H × 12.6in. D
188mm W × 73.5mm H × 320mm D
Weight 5.0kg (MAX)
Power
115V, 400Hz AC
Operating temperature range
23F to 131F / -5℃ to +55℃ (passive cooling)
Cooling
No external cooling required

* Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

* Features and specifications are subject to change without notice.
